Overview

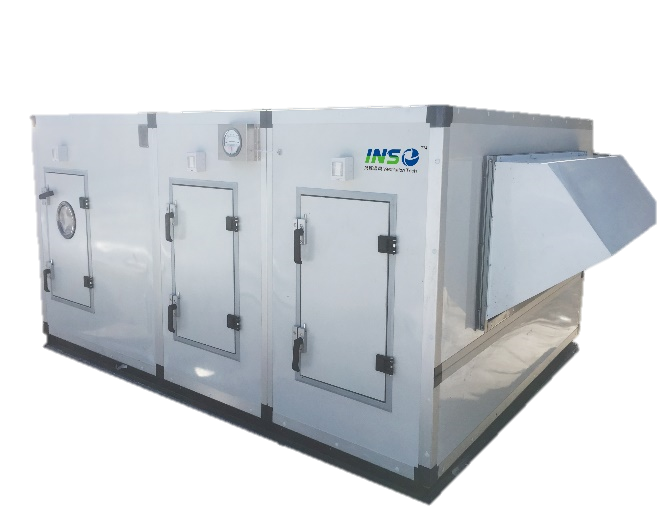

The Membrane Structure Fan is a complete outdoor-rated fan unit engineered specifically for air-supported membrane buildings such as air domes, coal sheds, and temporary warehouses. Built around our proven PAS/PNS standard plug fan, this unit features an integrated weatherproof enclosure designed to withstand continuous outdoor operation.
This fan solution provides the high-pressure, continuous-duty performance required to maintain air pressure in membrane structures while offering superior weather resistance and low maintenance operation in outdoor conditions.
Parameters
| Specification | Range | Details |
|---|---|---|
| Fan Size | 250-1400 mm | Multiple diameter options for flexible installation |
| Max Air Volume | 500-138,000 CMH | Scaled across size range for any capacity requirement |
| Max Pressure | 150-3500 Pa | High-pressure options for membrane structures |
| Airfoil Blades | 11 blades | High-efficiency backward curved impeller design |
| Plate Blades | 8 blades | Cost-effective alternative design option |
| Enclosure Material | Carbon Steel | Weatherproof with epoxy powder coating |
Key Features
Integrated Plug Fan
Professional-grade PAS/PNS centrifugal fan at the core, ensuring high efficiency and reliability.
Blade Optional
Choose between airfoil blades (11) for high efficiency or plate blades (8) for cost-effectiveness.
Variable Width
Adjustable impeller width allows optimization for specific airflow and pressure requirements.
Pressure Expansion
Extended pressure range accommodates varying membrane structure requirements and ambient conditions.
3 Strength Classes
Multiple structural grades available to match load requirements and installation conditions.
Complete Outdoor Unit
Fully integrated weatherproof enclosure with no additional outdoor protection required.
High Airflow
Delivers up to 138,000 CMH in large sizes, suitable for expansive membrane structures.
Weatherproof Design
Sealed bearings, epoxy-coated steel housing, and drainage provisions ensure outdoor durability.
Continuous Operation (24/7)
Engineered for non-stop duty cycles, essential for membrane structure pressurization integrity.
Low Maintenance
Sealed design reduces maintenance frequency with easy access for periodic service.
ATEX Optional
Available with ATEX certification for safe operation in hazardous or explosive environments.
Advantages
| Challenge | Insovent Solution |
|---|---|
| Outdoor Installation Exposure | Weatherproof enclosure with epoxy coating and sealed bearings withstands rain, snow, UV, and temperature extremes |
| Continuous 24/7 Operation | Fan is engineered for continuous duty with proper thermal management and maintenance-free sealed design |
| Positive Pressure Requirements | High-pressure capability (up to 3500 Pa) maintains membrane structure integrity in any weather |
| Hazardous Environment Compliance | ATEX-certified options available for coal sheds, chemical storage, and other special industrial buildings |
| Varying Membrane Sizes | Wide size range (250-1400 mm) with variable width and adjustable pressure scaling covers all structure types |
| Noise-Sensitive Locations | Airfoil blade option with optimized enclosure design minimizes noise generation |
| Installation Flexibility | Lightweight outdoor unit with lifting lugs and flanges simplifies mounting on membrane structures |
Applications
| Application Type | Description | Typical Requirements |
|---|---|---|
| Air Dome Stadiums | Large-span membrane structures used for sports facilities and events, requiring reliable pressurization for occupant safety | High airflow, continuous operation, low noise |
| Coal Sheds | Protective structures for coal storage with controlled air pressure to prevent dust escape | ATEX certification, weatherproof, high pressure |
| Membrane Warehouses | Temporary or permanent storage facilities using air-supported design for cost-effective coverage | Variable capacity, 24/7 reliability, low maintenance |
| Temporary Structures | Event tents, emergency shelters, and seasonal facilities requiring quick deployment and reliable support | Flexible sizing, easy installation, robustness |
| Special Industrial Buildings | Chemical storage, hazardous material containment, and other specialized industrial facilities | ATEX options, pressure control, durability |
